MERGING+PYRAMIX at the Shanghai Astronomy Museum

3D Immersive sound accompanies the exploration of the universe

Puidoux: August 2021 - On July 18, 2021, the Shanghai Astronomy Museum opened in a blaze of bright lights nearby the Dishui Lake in Pudong New Area, Shanghai. It covers an area of 58,603 square meters and a building area of 37,741 square meters, making it the largest planetarium in the world. With the vision of "shaping a complete view of the universe", the Astronomy Museum strives to stimulate people's curiosity, encourage them to appreciate the starry sky, understand the universe and think about the future. The main exhibition area includes three parts: "Homeland", "Cosmos" and "Journey", which show a panoramic view of the vast universe, create a multi-sensory exploration journey to help the audience shape a complete view of the universe. The "Homeland" exhibition area starts from the starry sky that we have been missing for a long time. It encourages you to stop and look up at the dazzling array of stars with the most advanced optical planetarium in the world, and then step into space to marvel at the huge earth, moon and sun, and lead the audience to walk the solar system and appreciate the meteorites, and then face the magnificence of the Milky Way to understand our position in space. The "Cosmos" exhibition area presents the wonderful phenomena of the universe in a panoramic view from the five dimensions of time and space, light, gravity, elements and life and the many interactive exhibits take you to explore the laws of the evolution and operation of celestial bodies. The "Journey" exhibition area features a river of brilliant scientific stars, showing the great journey of human exploration of the universe, as well as the beautiful vision of the future development of astronomy and space exploration.

"What If" Theater
The "What If" theater is located in the Cosmos exhibition area and uses a highly immersive 360-degree circular screen with 7.1.4 3D immersive sound to create an enveloping universe for the audience. Shanghai Motion Magic Digital Creative Technology Co., Ltd. ("Motion Magic") undertook the important task of audio and video design and production for the immersive experience of the "What If" theater.

The 7.1.4 speaker layout of the theater is tailor-made for the architectural structure and sound field of the theater and does not meet any existing audio production standards (such as Dolby Atmos® or Auro 3D). It is a typical "user-defined" environment. This layout posed a problem for Motion Magic. At the beginning of demo production, whenever sound effects producers took audio files mixed in a standard surround sound recording studio and played them in situ, they were always "very different" from what they heard during production due to the different placement of the speakers. In ordinary surround sound recording studios the lack of sky channels severely compromises the live effect of immersive sound. The project site only had a replay environment with no production equipment. The sound effects production staff of Motion Magic went back and forth between the urban recording studio and the planetarium, but they were still unable to produce satisfactory immersive sound effects. After studying on-site sound reinforcement and immersive sound production systems, the sound designer Mr. Chen Baizhou decided to move the Merging audio production system to the site and turn the theater into a mixing studio to achieve "what you hear is what you get".

Immersive sound production
The sound reinforcement system of the "What If" theater is an audio network based on the Dante protocol. Motion Magic uses the Pyramix MassCore audio workstation system based on the RAVENNA protocol as the core of audio production with a MERGING+HAPI handling the outputs. Through the AES67 protocol, the two are successfully connected on-site in Dante Controller. In this way, the theater speakers become monitor speakers for the sound effects production. The sound effect producer uses the "user-defined" bus function in Pyramix to input the position coordinates of the live speakers into the software one by one, so that in the Pyramix audio workstation, they have a 3D immersion that is exactly the same as the live speaker layout and position. Now the "What If" theater has become a production environment for the mixers. Through the processing of more than 100 audio tracks and dozens of effect plug-ins, the sound effect production masters of Motion Magic, a 12-channel 7.1.4 3D immersive sound file of the "What If" theater version of the Shanghai Astronomy Museum was finally completed. The finished immersive sound file perfectly fits the live acoustic conditions and speaker layout to achieve a satisfactory 3D experience.

Mr. Zhu Jie, technical director of Beijing Dreamula Digital Technology Co., Ltd., the support center of Merging Asia Pacific, was honored to lead his team in participating in the project implementation. Merging Technologies’ equipment will accompany the public on their journey to find the truth of the universe!


Shanghai Planetarium exterior from above Shanghai Planetarium exterior from above

Shanghai Planetarium exterior Shanghai Planetarium exterior

Shanghai Planetarium interior Shanghai Planetarium interior

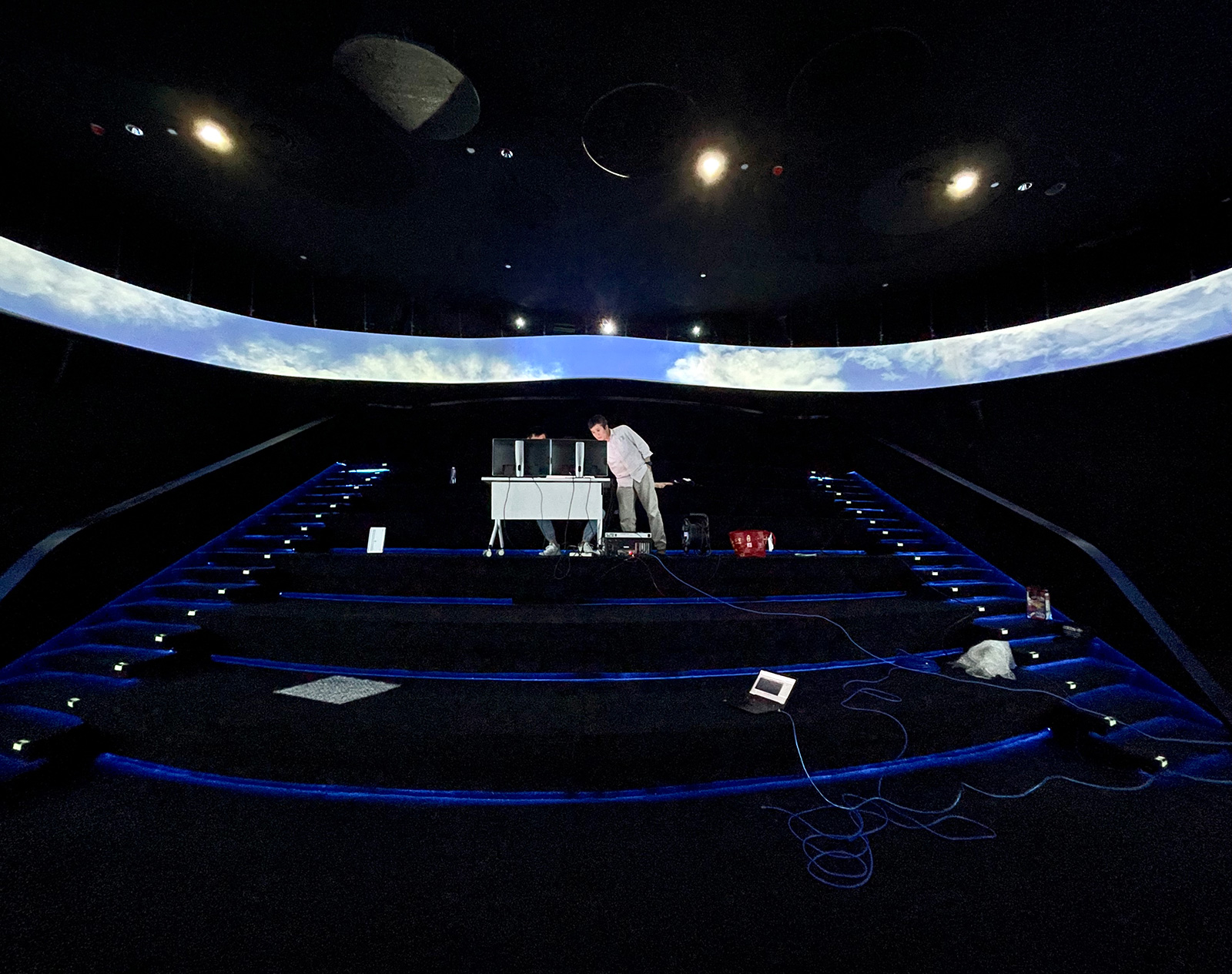

Auditorium - Mix Position Auditorium - Mix Position

Dreamula Team Dreamula Team

Pyramix Mixing Pyramix Mixing

Pyramix Mixing Pyramix Mixing

Pyramix Mixing Pyramix Mixing

Pyramix Mixing Pyramix Mixing

Merging Technologies SA is a Swiss manufacturer with over 25 years of experience in developing groundbreaking, professional Audio and Video products for a wide range of entertainment and media industries. With a dedicated user base in the elite end of the music, film, television, mastering and performances industries, Merging is committed to developing product ranges with unrivalled quality and flexibility, no matter what the application. Merging builds tools for people who want more from their systems, have an inherent need to push boundaries, and believe that quality always comes first.

RAVENNA is a solution for real-time distribution of audio and other media content in IP-based network environments. Utilizing standardized network protocols and technologies, RAVENNA can operate on existing network infrastructures. RAVENNA is designed to meet the strict requirements of the pro audio market featuring low latency, full signal transparency and high reliability and is fully AES67 compatible. With a capacity of nearly 8 x MADI streams over a single Gigabit Ethernet link, it is also the first and only Layer-3 based IP audio protocol with full support for high-channel count DXD and DSD signals.
While primarily targeting the professional broadcast market, RAVENNA is also suitable for deployment in other pro audio market segments like live sound, install market and recording. Possible fields of application include (but are not limited to) in-house signal distribution in broadcasting houses, theatres, concert halls and other fixed installations, flexible setups at venues and live events, OB van support, inter-facility links across WAN connections and in production & recording applications
